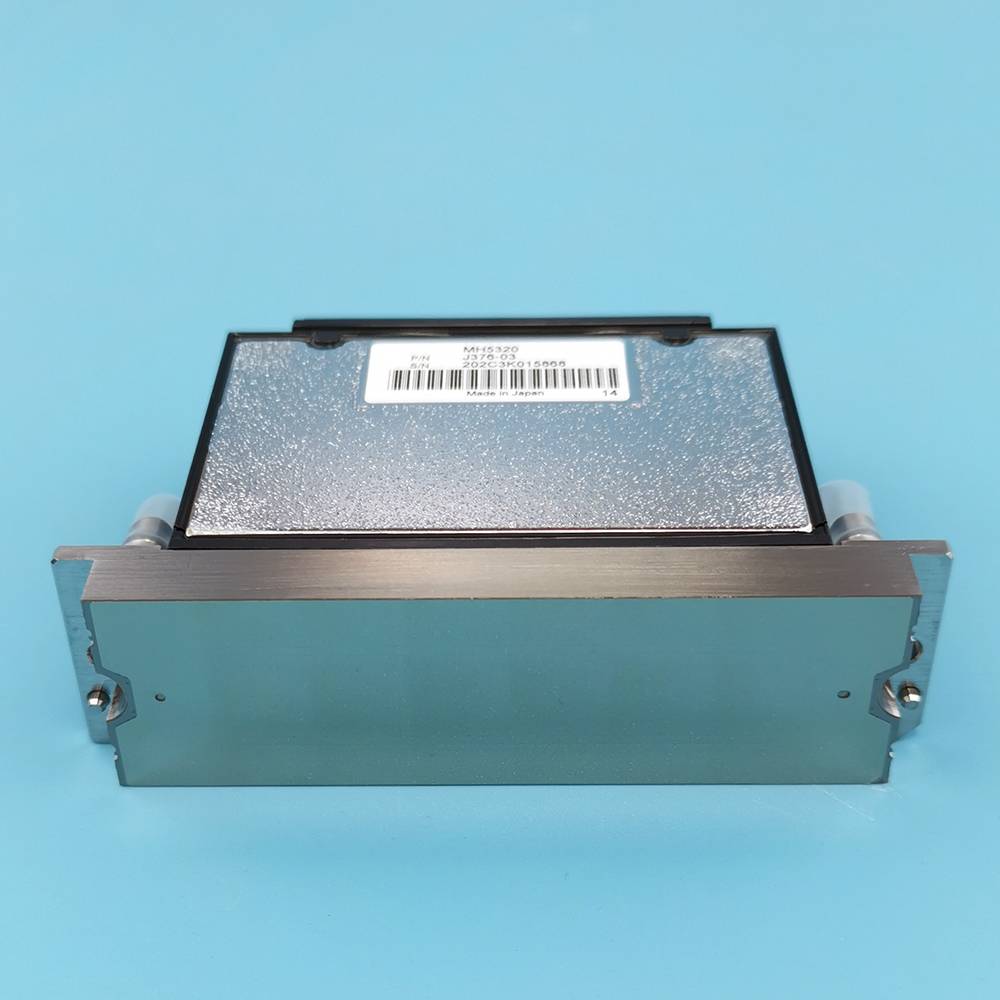

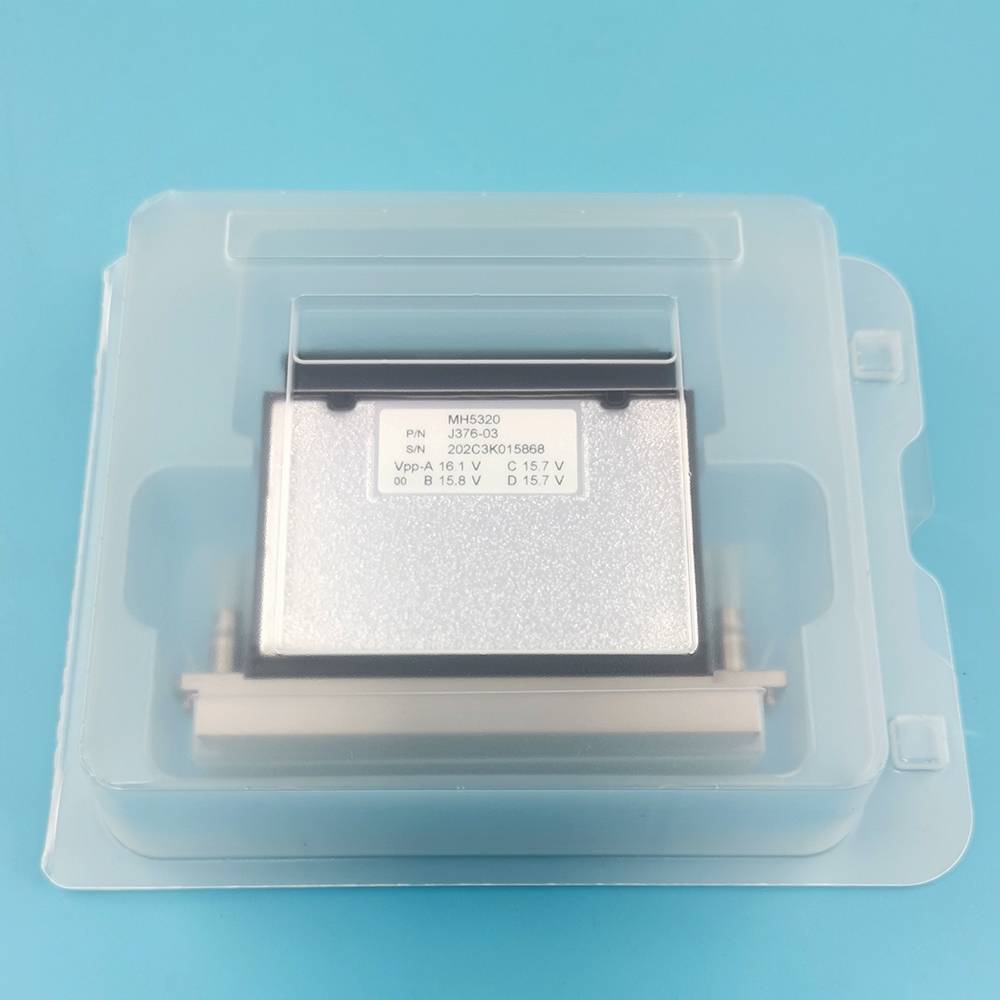

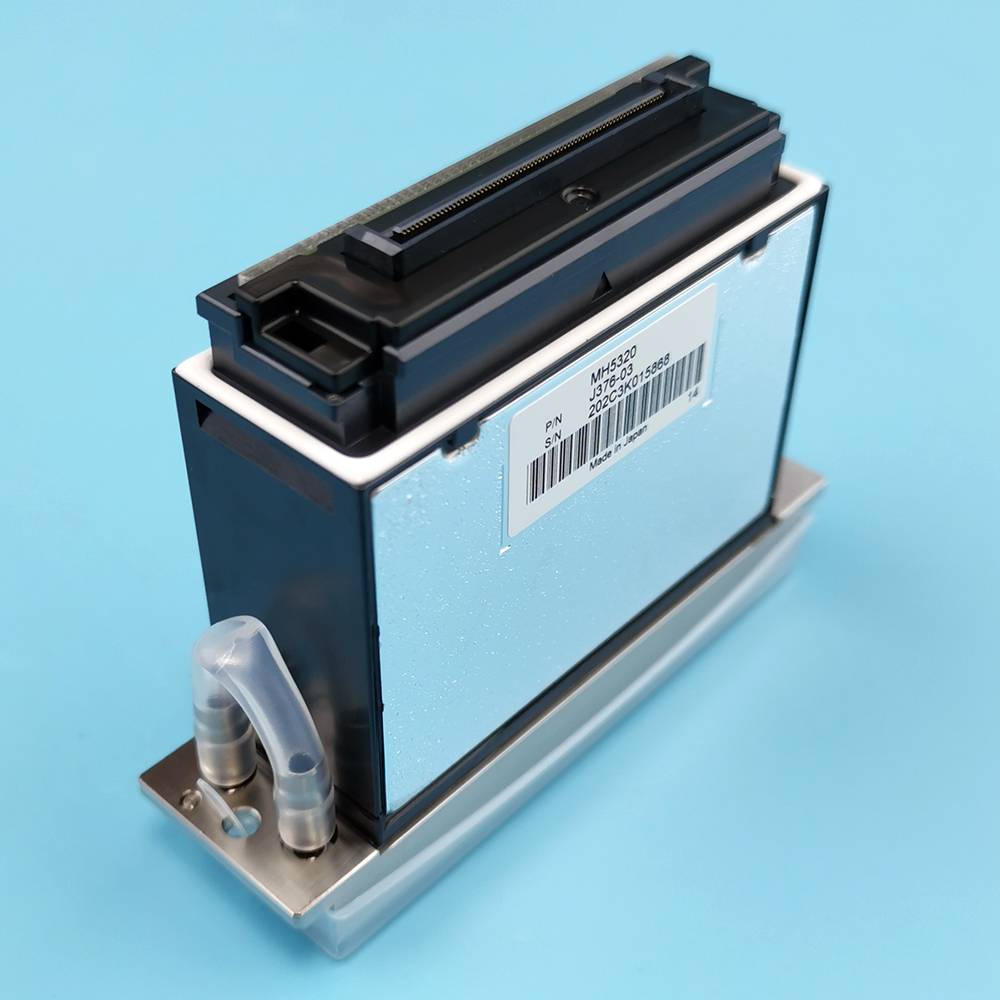

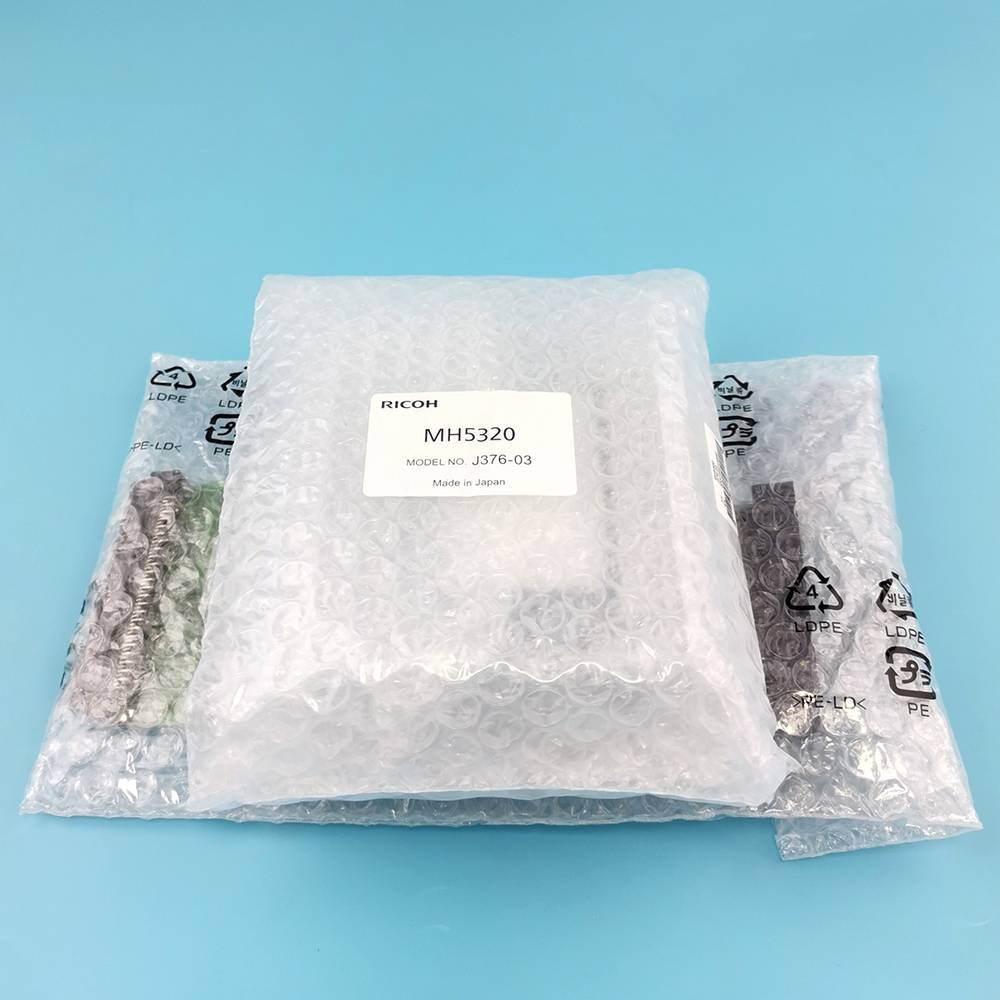

Ricoh GEN6 print head (MH5320) original print head

This Ricoh GEN6 head (MH5320 series) is compatible with UV based inks. The service life of the MH5320/MH5340 is more than double that of the MH5421/MH5441 that preceded it. A minimized 5pl droplet size and improved jetting accuracy yields excellent pri

Product Specification:
  • Dimensions : 89 x 25 x 69 mm (excluding cables)
  • Head materials : SST, Nickel alloy and Epoxy Adhesive
  • Nozzle plate surface : Coated SST
  • Number of nozzles : 4 x 320 nozzles
  • Nozzle spacing : 0.1693 mm
  • Nozzle density :
Inquiry Now
Product Details

Ricoh GEN6 print head (MH5320) original print head

 Product Details

  • Dimensions: 89 x 25 x 69 mm (excluding cables)
  • Head materials: SST, Nickel alloy and Epoxy Adhesive
  • Nozzle plate surface: Coated SST
  • Number of nozzles: 4 x 320 nozzles
  • Nozzle spacing: 0.1693 mm
  • Nozzle density: up to 600 npi
  • Temperature control: Integrated Heater and Thermistor
  • Operator temperature range: 60° C
  • Drop volume: Binary mode : 5pl / Grey-scale mode : 5-15pl
  • Jetting frequency: 50kHz (3 levels); 40kHz (4 levels)
  • Ink compatibility: UV


In addition,the following are all our Rioch brand types:

Model Be used In
Ricoh GEN4  uv
Ricoh GEN5  water base
Ricoh GEN5 UV UV ink/roll to roll/flat bed machine
Ricoh SWJ320 4 channel
Ricoh GEN5I /
Ricoh GH2220 /

 You May Also Like?

GH2220                                   Gen4                                   Gen5 water base and UV                                         gen5i

 About Payment and Delivery

once you paid ,Once paid, it will be shipped within 1-3 days, the arrival time is based on the shipping address

Have international transportation methods, Fedex, DHL, TNT, UPS, EMS, SF.And the delivery is timely, the time is short, and the speed is fast.

 Why choose us?

1.High standard quality inspection requirements

Five professional production lines, three quality inspections, professional safety, and strict quality assurance.

2.Strong sales team and cargo distribution capabilities

Six foreign trade sales teams, in-depth understanding of the quotation for different regions.

3.Rich customer case

Our customers are all over the world, including factories, agents, terminals, etc.

We also often go abroad to participate in EXPO,Brazil(Future Print),Mexico(Fespa),Germany(Fespa),Russia, Peru, United States, Turkey,etc.

4.Professional service team

24 hours online, promptly reply to inquiry.

Will immediately ship and ship orders, while solving other customer problems.

Regularly understand customers, pay attention to customer feedback, and solve customer problems in a timely and effective manner.

 Warehouse Overview



Q: Are you a manufacturer?

A: Yes.We are wide format printer parts manfacturer and print heads supplier.and ink pump is our main product

Q: What's the warranty of printhead?

A: We guarantee all print head is original and brand new,not further warranty,

     We will take product photos according to your needs

Q: What about the delivery time?

A: we accept the Alibaba,T/T transfer, Western Union, PayPal. Within 2-3 workdays after full payment is received.

Q:If you want to know more about digital printer spare parts and use?

A: Please feel free to contact us, we have the complete range of printer spare parts.
